S-22EZ+ Laser Screed

Somero is proud to offer the S-22EZ+ Advanced Laser Screed® Machine – one of the most technologically advanced Laser Screed® machines available in the world. It is packed with features that give you the competitive advantage and allows you to choose from several options to build the perfect machine to meet your needs.

Equipped with 360° machine rotation, a 20 foot telescopic boom and your choice of pivoting screed heads,
the S-22EZ+ continues the tradition of delivering the industry’s highest quality and production rates with unsurpassed maneuverability. The customized OASIS laser control system is simple to operate and is upgradeable as technology advances. A redesigned, EZ Clean Head reduces clean-up time and improves long term maintenance. New convenience features and redesigned storage compartments improve ergonomics around the machine and operator efficiency.

The S-22EZ+ options platform allows you to build the machine you need to meet your demands. A few of the available options include: 12’ or 14’ vibrator width, roller plow, lower frame storage, spray bar, the Somero® 3-D Profiler System®, Somero® Floor Levelness System®, and many more.

ALL NEW FEATURES/BENEFITS:

Quality Drivers:

> Auger/Vibrator Speed Control
> Screed Alignment Camera
> EZ Slope Feature
> Head Setup Jig

SAFETY DRIVERS

Passive Oil Warm Up
> Head and Rear Camera
> EZ Engine Access

HEAD ENHANCEMENTS

> Proportional Head Rotate Joystick
> Head Switches – For Easier Cleaning
> Head Electronic Load Sensing

ERGONOMIC IMPROVEMENTS

Fully Adjustable Chair

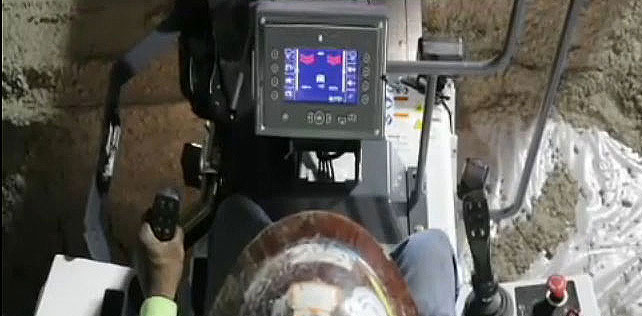

> Large 4K Display

Availability:

United States
United Kingdom
India

Product Brochures

Features & Benefits

Full Color LCD Display w/ Integrated Diagnostics
EZ Clean Screed Head*
Head Transport Stands*
Column-Block Protection
Hydraulic Screed Head Rotation
360° Machine Rotation
Somero Quick GradeSet SystemTM
LED Work Lights & Compartment Lighting*
Built-In Storage
Automatic Throttle
Programmable Quick Pass
Illuminating Fuse Panel*
OASIS Laser Control System
Soft Landing
Proemion Telematic Diagnostics - come standard on this machine

* performance may vary based on charging and jobsite conditions

Base Specifications

Weight	14,700 lbs / 6,668 kg with 12’ (3.7 m) Screed Head
Width	7’2” / 2.2 m outside of tires
Length	27’10” / 8.4 m (transport mode with 12’ / 3.7 m screed head)
Height	8’3” / 2.5 m
Engine (Standard)	65 HP (48.5kW) Cummins, Turbo Diesel, Tier 4 Final
Self-Propelled	Standard
Screed Head Width (Standard)	14’7” / 4.44 m standard,
Screed Head Width (Optional)	16’6” / 5.02 m optional
Telematic Software	Yes - Proemion Telematic Diagnostics

Meet the Somero S-22EZ+ Laser Screed Machine

The S-22EZ+ is one of the most technologically advanced Laser Screed® machines available in the world. It allows you to choose from several options to build your Laser Screed® Machine to meet your needs.
